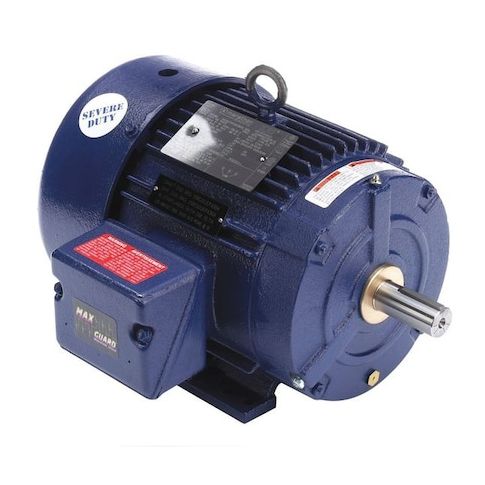

IEEE 841 Motor, 3-Ph, TEFC, 5 HP, T2B MPN:184THFCD9026
IEEE 841 Motor, 3-Ph, TEFC, 5 HP, T2B
This IEEE 841 Motor from Marathon is designed for severe duty applications, delivering reliable performance in the most demanding environments. With a 5 HP rating and 1,755 RPM, it's ideal for use in applications such as oil and gas, chemical processing, and water treatment. Its 184T frame and 6.5A full load amps ensure efficient operation, while the Class H insulation and Hazardous Location certification provide added safety and protection. Suitable for use at 460V AC, this motor is a reliable and efficient solution for severe duty applications that require high performance and durability.
Top product features:
- Severe Duty Capability
- Three-Phase Design
- Insulation Class H
Top product applications:
- Pump applications in severe duty environments
- Heavy-duty conveyor belt systems
- High-torque applications in hazardous locations, such as oil rigs or refineries
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 6.5 A, 184T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Hazardous Location Class Division 2/Zone 2 Class 1,Groups A,B,C,D, Temp. Code T2B
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 17.20
- Package Height: 15.00
- Package Weight: 131.00
Product info last updated on March 28, 2026 5:33pm UTC
Category: Motors
