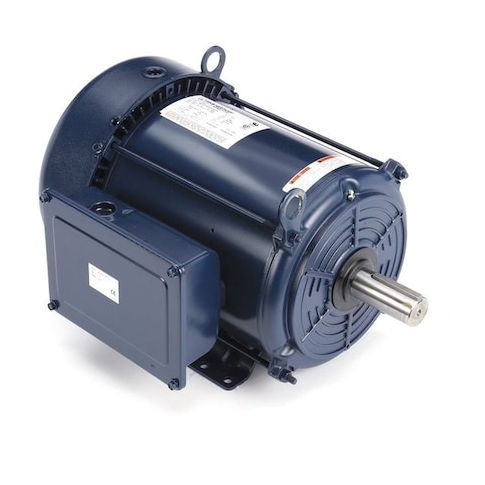

Capacitor-Start/Run General Purpose Motor, 5 hp HP, 208-230V AC Voltage, 213T Frame MPN:213TBFW7026
Capacitor-Start/Run General Purpose Motor, 5 hp HP, 208-230V AC Voltage, 213T Frame
This 5 hp Capacitor-Start/Run General Purpose Motor from Marathon is designed for single-phase applications, offering a reliable and efficient solution for various industrial and commercial uses. Its 213T frame and totally enclosed fan-cooled design make it suitable for continuous duty cycles in environments with high ambient temperatures up to 40°C. With a maximum speed of 1,749 RPM and a service factor of 1, this motor is ideal for applications such as pumps, fans, and conveyor systems. Its compact size and durable construction make it a versatile choice for a wide range of industrial and commercial settings.
Top product features:
- Capacitor-Start/Run design for efficient motor operation
- Totally Enclosed Fan Cooled motor enclosure for protection from environmental factors
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 1,749 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 24.5-22.0 A, 213T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.80
- Package Height: 9.00
- Package Weight: 106.00
Product info last updated on February 15, 2026 9:03pm UTC
Category: Motors
