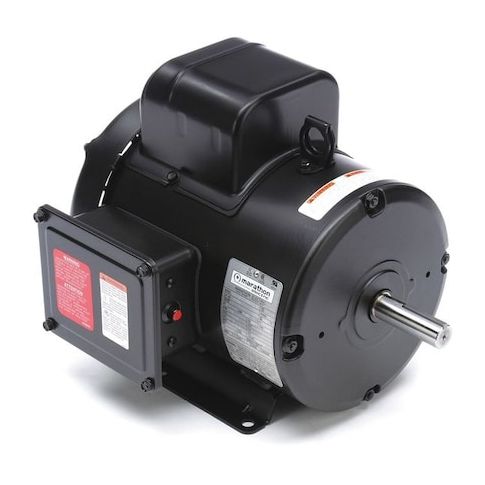

General Purpose Farm Duty Motor, Capacitor-Start, 2 HP, 115/230V AC, 1, 760 Nameplate RPM MPN:182TCFW9061
General Purpose Farm Duty Motor, Capacitor-Start, 2 HP, 115/230V AC, 1, 760 Nameplate RPM
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 24/12 A, 182TZ Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.00
- Package Width: 15.00
- Package Height: 13.00
- Package Weight: 71.00
Product info last updated on February 16, 2026 6:58pm UTC
Category: Motors
