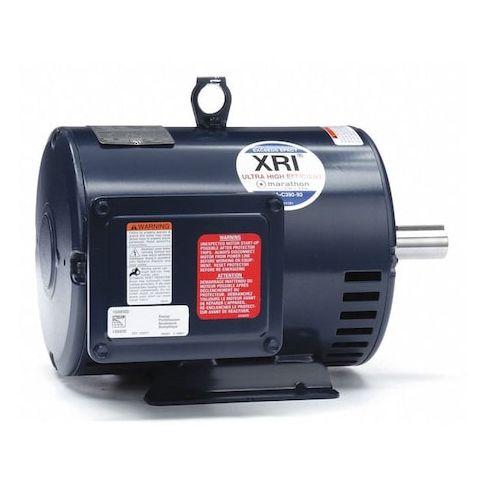

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 1755 rpm Nameplate RPM MPN:184TTDW16038
Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 1755 rpm Nameplate RPM
This 5 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial processes, manufacturing, and commercial facilities. Its open drip-proof enclosure provides protection from dust and moisture, making it ideal for use in harsh environments. The motor's rigid base mounting and steel frame ensure stability and durability, while its ball bearings and thermal protection system prolong lifespan. With a high efficiency rating of 89.5% and a service factor of 1.15, this motor is suitable for continuous duty operation, making it a reliable choice for demanding applications.
Top product features:
- Three-Phase Operation: The motor operates on three-phase power for efficient and reliable performance.
- Open Drip Proof Motor Enclosure Design: The motor's enclosure design protects against dust and water ingress, ensuring safe operation in various environments.
- Ball Bearings: The motor features ball bearings for smooth and quiet operation, reducing wear and tear on the motor and prolonging its lifespan.
Top product applications:
- Industrial conveyor systems
- Pumping stations
- Textile manufacturing machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 5 HP, Nameplate RPM 1755 rpm, Frame 184T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 12.6/6.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 13.60
- Package Height: 14.00
- Package Weight: 80.00
Product info last updated on February 19, 2026 11:17am UTC
Category: Motors
