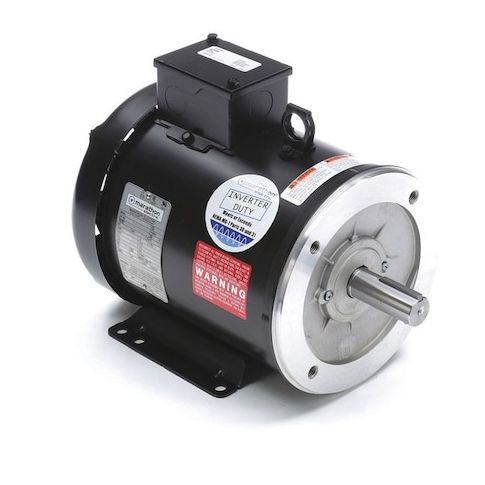

Vector Motor, 3 HP, 9 ft.-lb., 230/460V MPN:182THFW7729
Vector Motor, 3 HP, 9 ft.-lb., 230/460V
This 3 HP Vector Motor from Marathon is a high-performance solution for demanding applications. Designed for three-phase operation, it offers a nameplate RPM of 1,765 and a speed range of 1,000:1, making it ideal for use in industrial settings where high torque and precision are required. With a torque of 9 ft-lb and a max. speed of 4,200 RPM, this motor is perfect for applications such as conveyors, pumps, and material handling systems. Its continuous duty cycle and NEMA Design A rating ensure reliable operation in a variety of environments. Ships in 16 days.
Top product features:
- Three-phase design
- Nameplate RPM of 1,765
- Speed range of 1,000:1
Top product applications:
- Pumps
- Conveyors
- Fans
Vector Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.4/4.2 A, 182TC Frame, Torque 9 ft-lb, Max. Speed 4,200 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.31
- Package Width: 13.50
- Package Height: 13.44
- Package Weight: 76.00
Product info last updated on February 16, 2026 9:59am UTC
Category: Motors
