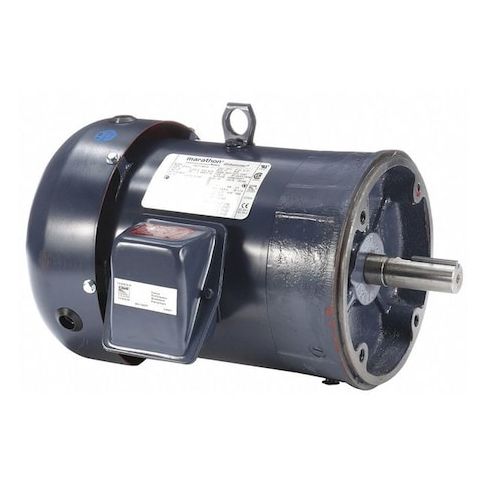

Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM MPN:184TTFBD6029
This 5 HP three-phase general purpose motor is designed for a wide range of applications, including industrial processes, manufacturing, and commercial facilities. Built with a totally enclosed fan cooled motor enclosure, it provides reliable operation in various environments. With a nameplate RPM of 1765, it offers efficient power conversion and meets the needs of continuous duty operations. The motor's steel frame and ball bearings ensure durability and long lifespan. Suitable for applications such as conveyor systems, pumps, and fans, this motor is a reliable choice for industries requiring high performance and efficiency.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Heavy industrial applications that require high power and efficiency
- Pump and fan systems in factories and manufacturing facilities
- Material handling equipment such as conveyor belts and cranes
The MARATHON MOTORS - 184TTFBD6029 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This type of motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It converts electrical energy into mechanical energy to operate different types of machinery, making it versatile across various sectors from manufacturing lines to HVAC systems.
Key Features of the MARATHON MOTORS - 184TTFBD6029:
- CC Number: The unique identifier assigned by EASA for classifying and tracking this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: A continuous duty cycle is a specification that describes the motor's ability to operate continuously under certain conditions.
- Frame: The structural component that houses and supports the internal parts conforms to standard specifications for compatibility (184TC).
- Full Load Amps: Draws a maximum current of 13.2/6.6 A when operating at full capacity which is crucial for determining power supply requirements.
- Green Certification or Other Recognition: NEMA Premium(R) Rated signifies that it meets certain environmental and energy efficiency standards.
- Inverter Rated: Yes - compatible with a variable frequency drive for potential speed & torque adjustments.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 16.30
- Package Height: 14.50
- Package Weight: 110.00
