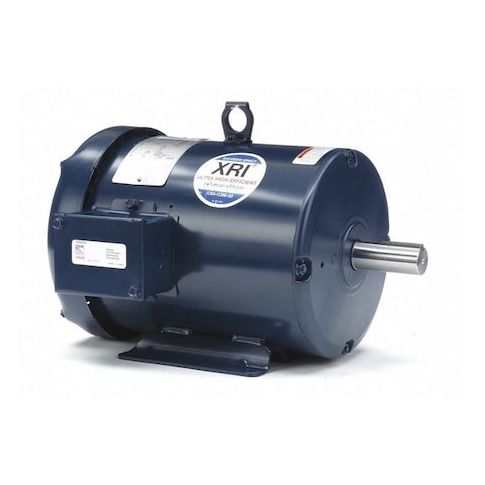

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 3495 rpm Nameplate RPM MPN:184TTFBD6002
Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 3495 rpm Nameplate RPM
This 5 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan cooled motor enclosure provides reliable operation in demanding environments, while its ball bearings ensure smooth and quiet operation. With a nameplate RPM of 3495 rpm and a maximum ambient temperature of 40 degrees C, this motor is suitable for continuous duty applications. Its high efficiency of 89.5 percent and CSA, UL, and CE certifications make it a reliable choice for industries such as manufacturing, oil and gas, and food processing.
Top product features:
- Three-phase operation provides balanced power distribution.
- Totally enclosed fan-cooled design enhances motor cooling and protection.
- Ball bearings ensure smooth and quiet motor operation.
Top product applications:
- Industrial Automation
- Pumping Systems
- Material Handling Equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3495 rpm, Frame 184T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 13.0-12.0/6.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 16.00
- Package Height: 14.50
- Package Weight: 87.00
Product info last updated on February 24, 2026 8:53pm UTC
Category: Motors
