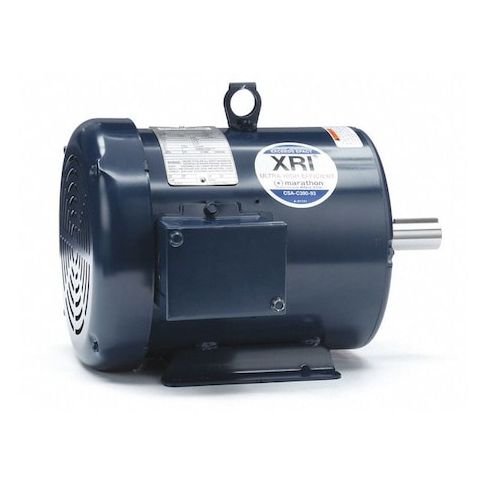

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 200V AC Voltage, 1, 770 Nameplate RPM MPN:182TTFBD6039
Three-Phase General Purpose Motor, 3 HP, 182T Frame, 200V AC Voltage, 1, 770 Nameplate RPM
This 3 HP, 182T frame, three-phase general purpose motor from Marathon is designed for heavy-duty applications requiring high efficiency and reliability. Ideal for use in industrial settings, such as manufacturing facilities, warehouses, and distribution centers, this motor provides continuous duty operation and can withstand temperatures up to 40 degrees Celsius. With a nameplate RPM of 1,770 and a service factor of 1.15, it offers improved performance and efficiency in applications such as conveyor systems, pumps, and compressors. Its rugged design and CE, CSA, and UL certifications ensure safe and reliable operation in a variety of industries.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1,770, Frame 182T, Voltage 200V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 1701-1800, CE, CSA (LR2025), UL (E49747)
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.40
- Package Width: 13.50
- Package Height: 13.90
- Package Weight: 73.50
Product info last updated on February 3, 2026 2:32pm UTC
Category: Motors
