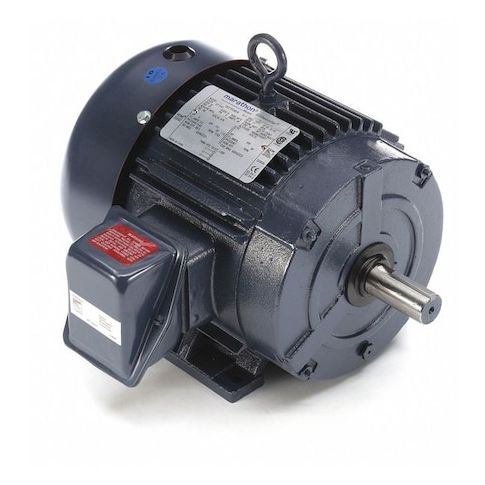

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 575V AC Voltage, 1762 rpm Nameplate RPM MPN:182TTFCD6030
Three-Phase General Purpose Motor, 3 HP, 182T Frame, 575V AC Voltage, 1762 rpm Nameplate RPM
This 3 HP three-phase general purpose motor is designed for demanding applications, featuring a totally enclosed fan cooled (TEFC) design and ball bearings for smooth operation. With a nameplate RPM of 1762 and a high service factor of 1.15, it can handle heavy loads and maintain efficiency. Suitable for continuous duty, it's ideal for use in manufacturing, material handling, and other industrial settings where reliability and performance are crucial. Its high efficiency of 89.5 percent and compact design make it a cost-effective and space-saving solution for a wide range of applications.
Top product features:
- Three-Phase AC Voltage Capability
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumps and water treatment systems
- Industrial machinery and equipment
- Conveyor belts and systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1762 rpm, Frame 182T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 104.00
Product info last updated on February 27, 2026 9:24am UTC
Category: Motors
