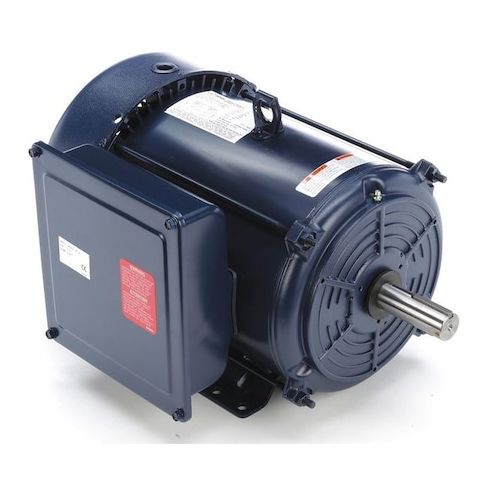

General Purpose Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230V AC, 1, 740 Nameplate RPM MPN:213TBFW7027
General Purpose Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230V AC, 1, 740 Nameplate RPM
The Marathon 5 HP, 230V AC, capacitor-start/run motor is a reliable and efficient solution for general purpose farm duty applications. With a nameplate RPM of 1,740, this motor provides consistent power for demanding tasks. Its totally enclosed fan cooled design ensures long motor life and minimal downtime, while its manual thermal protection and rugged construction make it perfect for continuous duty cycles. Suitable for applications such as irrigation pumps, grain dryers, and other farm equipment, this motor offers a cost-effective and dependable solution for farmers and agricultural professionals. Its compact size and robust design make it easy to install and maintain.
Top product features:
- Totally Enclosed Fan Cooled design
- Single Phase, Capacitor-Start/Run motor design
- Continuous Duty Cycle operation
Top product applications:
- Farm irrigation pumps
- Pumping water from wells or reservoirs for agricultural use
- Grain dryers
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 22.6 A, 213TZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 119.00
Product info last updated on February 6, 2026 3:59am UTC
Category: Motors
