Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 230/460V AC Voltage, 3530 rpm Nameplate RPM MPN:182TTFBD6003
Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 230/460V AC Voltage, 3530 rpm Nameplate RPM

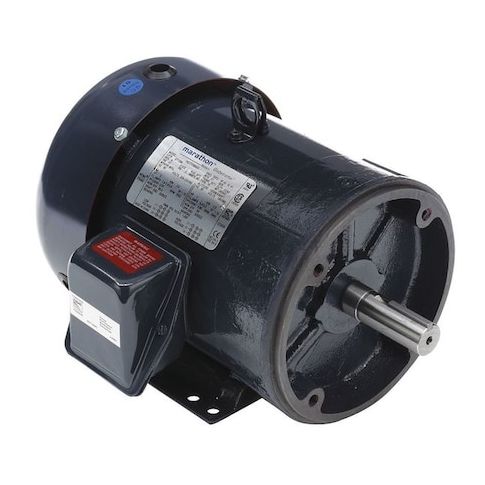

The Marathon 3 HP three-phase general purpose motor is a reliable and efficient solution for a wide range of applications. Designed for continuous duty, this motor features a totally enclosed fan-cooled enclosure and rigid base mounting type, making it suitable for use in harsh environments. With a high service factor and ball bearings, it provides long-lasting performance and reduced maintenance needs. Ideal for use in manufacturing, processing, and other industrial settings, this motor is also suitable for applications such as pumps, fans, and conveyor systems, where high efficiency and reliability are crucial.
Top product features:
- Three-phase operation allows for efficient use of electrical power
- Totally enclosed fan cooled motor enclosure design provides a safe and durable environment
- Ball bearings enable smooth and long-lasting motor operation
Top product applications:
- Industrial Laundry Equipment
- Pumps and Pumps Systems
- Fans and Blowers
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 3530 rpm, Frame 182TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.2/4.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.80
- Package Width: 16.10
- Package Height: 14.80
- Package Weight: 61.00
Product info last updated on March 11, 2026 6:40pm UTC
Category: Motors
