Three-Phase General Purpose Motor, 5 HP, 184T Frame, 200V AC Voltage, 1760 rpm Nameplate RPM MPN:184TTFBD6039
Three-Phase General Purpose Motor, 5 HP, 184T Frame, 200V AC Voltage, 1760 rpm Nameplate RPM

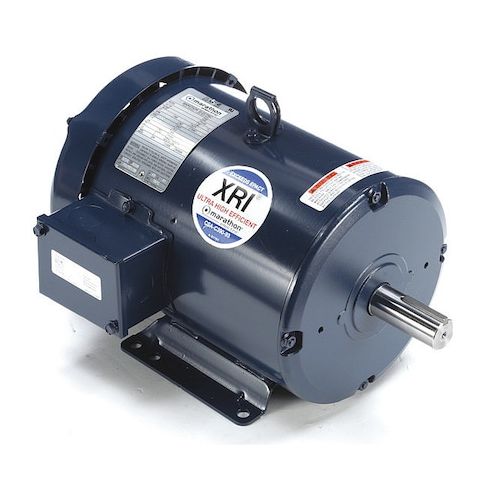

This 5 HP three-phase general purpose motor from Marathon is a reliable and efficient solution for a variety of industrial applications. Suitable for continuous duty, it features a totally enclosed fan cooled motor enclosure design and ball bearings for smooth operation. With a nameplate RPM of 1760 rpm and a maximum ambient temperature of 40 degrees C, it can withstand harsh environments. The motor's high efficiency of 89.5 percent and 1.15 service factor make it an ideal choice for applications such as pumps, fans, and conveyor systems, providing consistent performance and extended motor life.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty
Top product applications:
- Pumps and other machinery in industrial settings
- Fans and blowers in HVAC systems
- Manufacturing equipment such as conveyor belts and presses
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1760 rpm, Frame 184T, Voltage 200V AC, 60 Hz Hz, Three Phase, Full Load Amps 14.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.20
- Package Width: 13.70
- Package Height: 13.80
- Package Weight: 86.31
Product info last updated on February 11, 2026 5:03am UTC
Category: Motors
