Close-Coupled Pump Motor, 3-Phase, 5 HP MPN:184TTDBD6032

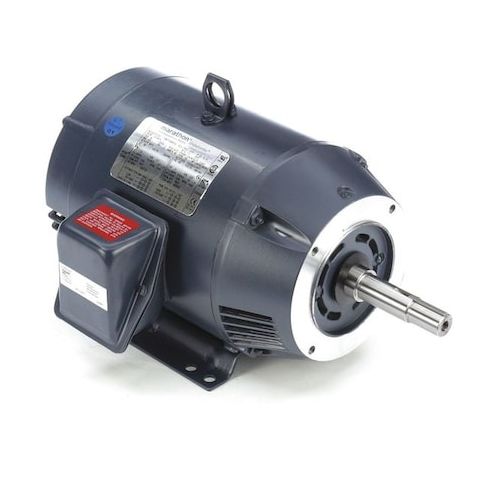

Close-Coupled Pump Motor, 3-Phase, 5 HP
The Marathon Close-Coupled Pump Motor is a high-performance, 3-phase motor designed for continuous duty in a variety of applications. Its compact design and exterior conduit box location make it ideal for use in tight spaces, while its 10:1 variable torque and 2:1 constant torque capabilities make it suitable for use with a wide range of pumps. With a maximum ambient temperature of 40 degrees C and a durable ball-bearing design, this motor is perfect for use in demanding industrial environments. Its inverter-rated design also makes it compatible with variable frequency drives, making it a versatile and reliable choice for many applications.
Top product features:
- Close-coupled design for reduced installation complexity
- Inverter-rated for variable torque applications
- Ball bearings for improved motor reliability
Top product applications:
- Pump
- Motor Bearings Ball
- Motor Application Pump
Close-Coupled Pump Motor, Body Dia. 8.4 in, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 184JM, Hz 60 Hz, Full Load Amps 13.2/6.6, Height 9 13/16 in, HP 5, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 11 3/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 13.20
- Package Height: 16.00
- Package Weight: 97.00
Product info last updated on February 3, 2026 9:49am UTC
Category: Motors
