Severe Duty Mtr, 3-Ph, TENV, 3 HP MPN:182TTTCD6501
Severe Duty Mtr, 3-Ph, TENV, 3 HP

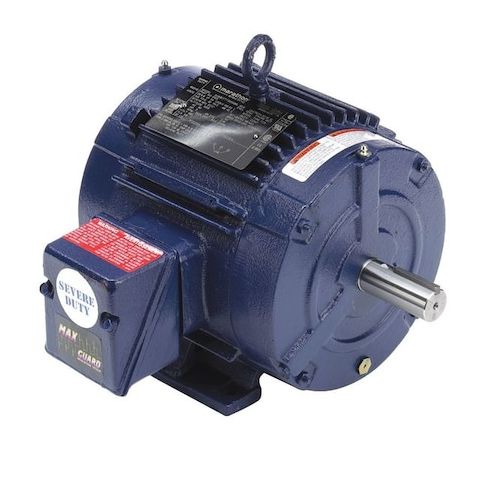

This severe duty motor from Marathon is designed for demanding applications, featuring a totally enclosed non-ventilated (TENV) design and a cast iron frame for maximum durability. With a high service factor of 1.15 and ball bearings for reduced maintenance, this motor can handle continuous duty in temperatures up to 40°C. Suitable for use in industrial settings, such as manufacturing and material handling, this motor is also CSA and UL certified for added assurance. Its high efficiency of 89.5% and rigid base mounting make it an ideal choice for applications requiring reliable and efficient power.
Top product features:
- Totally Enclosed Non-Ventilated Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Heavy industrial manufacturing
- High-torque material handling equipment
- Large-scale commercial laundry machines
Severe Duty Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 3 HP, Nameplate RPM 3525 rpm, Frame 182T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600, CSA (LR2025), UL (E49747)
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 17.00
- Package Height: 15.60
- Package Weight: 98.00
Product info last updated on February 24, 2026 1:56am UTC
Category: Motors
