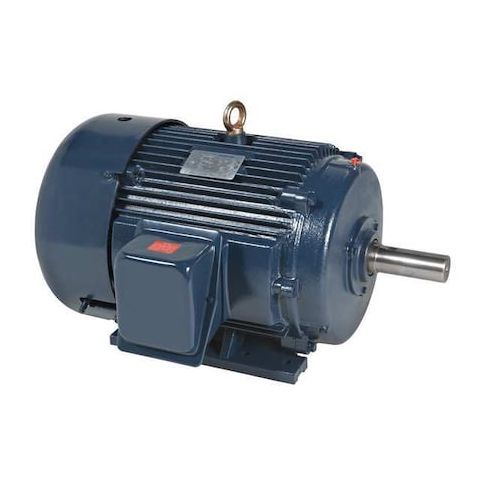

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 575V AC Voltage, 3525 rpm Nameplate RPM MPN:184TTFCD6005
Three-Phase General Purpose Motor, 5 HP, 184T Frame, 575V AC Voltage, 3525 rpm Nameplate RPM
This 5 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications that require continuous duty operation. With a nameplate RPM of 3525, it provides high-speed performance and efficiency, with a nominal efficiency of 89.5%. The totally enclosed fan-cooled motor enclosure keeps the motor cool and protected from dust and debris, making it ideal for use in harsh environments. Suitable for applications such as pumps, fans, and conveyor systems, this motor offers reliable operation and long lifespan, making it a great choice for industrial settings where high performance and efficiency are crucial.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pumps and compressors
- Fans and blowers
- Conveyors and material handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3525 rpm, Frame 184T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.30
- Package Width: 14.10
- Package Height: 17.70
- Package Weight: 106.00
Product info last updated on February 12, 2026 1:03pm UTC
Category: Motors
