Three-Phase General Purpose Motor, 10 HP, 213T Frame, 230/460V AC Voltage, 3520 rpm Nameplate RPM MPN:213TTDBD6001
Three-Phase General Purpose Motor, 10 HP, 213T Frame, 230/460V AC Voltage, 3520 rpm Nameplate RPM

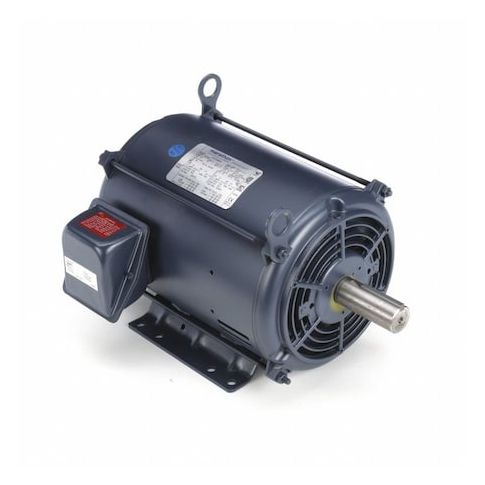

Boost your industrial operations with the Marathon 10 HP Three-Phase General Purpose Motor. Ideal for continuous duty applications, this motor delivers reliable performance in demanding environments. Its rigid base mounting and ball bearings ensure smooth operation, while its 89.8% nominal efficiency reduces energy costs. Suitable for use in manufacturing, processing, and material handling, this motor is also suitable for applications such as pumps, fans, and conveyors. With a service factor of 1.15 and a maximum ambient temperature of 40°C, this motor is designed to withstand the toughest conditions, making it an excellent choice for heavy-duty industrial applications.
Top product features:
- Three-Phase General Purpose Motor design allows for efficient power transmission and distribution in industrial settings.
- Open Drip Proof Motor Enclosure Design provides protection from dust and splashes, making it suitable for use in harsh environments.
- Ball Motor Bearings enable smooth and quiet operation, reducing wear and tear on the motor and prolonging its lifespan.
Top product applications:
- Industrial manufacturing facilities
- Chemical processing plants
- Pumps and conveyor systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 10 HP, Nameplate RPM 3520 rpm, Frame 213T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 24.2/12.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.8 Percent, Continuous Duty, 3001-3600, CE, CSA (LR2025), UL (E49747)
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 17.10
- Package Height: 15.50
- Package Weight: 106.00
Product info last updated on February 13, 2026 8:32pm UTC
Category: Motors
