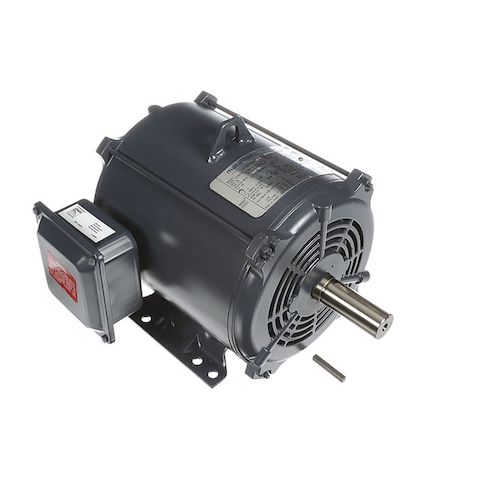

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 208-230/460V AC Voltage, 1765 rpm Nameplate RPM MPN:184TTDBD6026
This 5 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial and commercial use. Its 184T frame and open drip proof motor enclosure make it suitable for environments where moisture and dust are present. The motor's 1765 rpm speed and 88.5% efficiency provide reliable and cost-effective operation. Its rigid base mounting and ball bearings ensure smooth and quiet operation. Ideal for use in HVAC systems, pumps, and conveyor systems, this motor offers a reliable and efficient solution for continuous duty applications. Its CSA and UL certifications ensure compliance with industry standards.
Top product features:
- Three-phase design for high power applications
- Open drip proof motor enclosure design for protection against dust and moisture
- Ball motor bearings for smooth and efficient operation
Top product applications:
- Pumping stations
- Conveyor systems
- Industrial manufacturing equipment
The MARATHON MOTORS - 184TTDBD6026 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is designed to convert electrical energy into mechanical energy, making it suitable for power transmission and pneumatics applications in industrial and commercial settings. Its versatile design allows it to be used across various sectors including manufacturing lines and HVAC systems.
Key Features of the MARATHON MOTORS - 184TTDBD6026:
- CC Number: The unique identifier CC003A assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: Rated for continuous operation within the specified duty cycle.
- Frame: The structural component housing internal parts conforms to standard specifications with frame size 184T for compatibility and interchangeability.
- Full Load Amps: Draws maximum current of 13.2/6.6 A when operating at full capacity which is compatible with the specified current range.
- Green Certification or Other Recognition: NEMA Premium(R) Rated acknowledging that this motor meets certain environmental and energy efficiency standards.
- Inverter Rated: Compatible with variable frequency drives as per design specifications, which may allow varying levels of speed and torque control based on application requirements.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 13.00
- Package Height: 13.00
- Package Weight: 86.00
