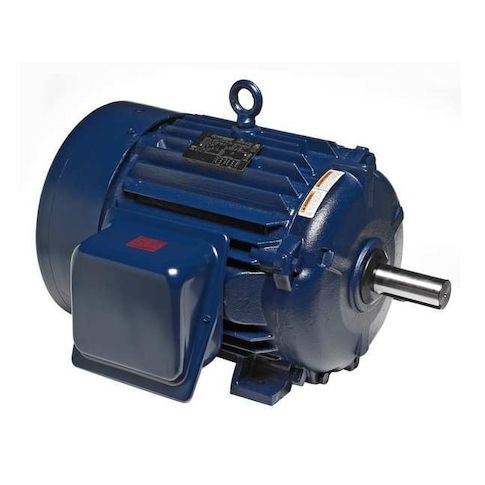

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 1755 rpm Nameplate RPM MPN:184TTFCD6070
Three-Phase General Purpose Motor, 5 HP, 184T Frame, 230/460V AC Voltage, 1755 rpm Nameplate RPM
This 5 HP three-phase general purpose motor from Marathon is designed for a variety of industrial applications requiring high reliability and efficiency. With a totally enclosed fan cooled motor enclosure, it operates at 1755 rpm and features a rigid base mounting type for secure installation. The motor's 81.5% nominal efficiency and 1.15 service factor ensure optimal performance in continuous duty applications. Suitable for use in a range of industries, including manufacturing, processing, and material handling, this motor is a reliable choice for demanding tasks. Its compact design and durable construction make it an ideal solution for applications where space is limited.
Top product features:
- Three-Phase Design for Efficient Power Transfer
- Totally Enclosed Fan Cooled Motor Enclosure for Reliable Operation in Harsh Environments
- Ball Motor Bearings for Smooth and Quiet Operation
Top product applications:
- Pump applications such as water treatment, chemical processing, and wastewater treatment
- Conveyor systems for material handling and processing in industries like manufacturing and mining
- Fans and blowers for ventilation and air circulation in commercial and industrial settings
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1755 rpm, Frame 184T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 12.4/6.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 81.5 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 22.00
- Package Height: 14.00
- Package Weight: 109.00
Product info last updated on March 14, 2026 11:04pm UTC
Category: Motors
