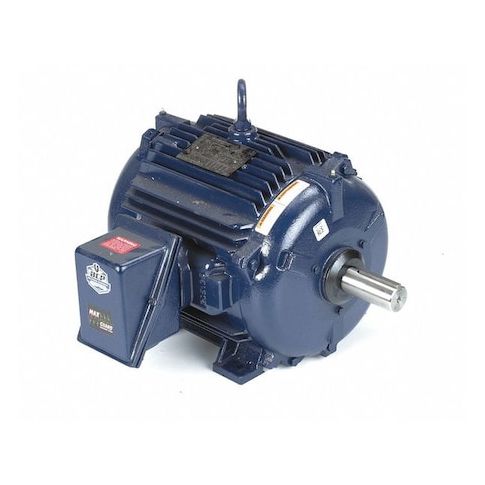

Cooling Tower Motor, Three Phase, 15 HP, 1, 775 Nameplate RPM, 230/460V AC, 254TV Frame MPN:254TTTCD16545
Cooling Tower Motor, Three Phase, 15 HP, 1, 775 Nameplate RPM, 230/460V AC, 254TV Frame
This 15 HP three-phase cooling tower motor is designed to provide efficient and reliable performance in a wide range of applications, including commercial and industrial cooling systems. With a nameplate RPM of 1,775 and a 230/460V AC voltage rating, this motor is suitable for use in hot and humid environments, where efficient cooling is critical. Its totally enclosed air-over design and ball bearings ensure long motor life and minimal maintenance, while its cast iron frame provides added durability. Ideal for use in data centers, hospitals, and other high-temperature environments, this motor is a reliable solution for cooling system applications.
Top product features:
- Totally Enclosed Air-Over Design for Protection from Environmental Elements
- Three-Phase Operation for Efficient Power Management
- Ball Bearings for Smooth and Quiet Operation
Top product applications:
- Cooling towers in industrial plants
- HVAC systems in large commercial buildings
- Manufacturing facilities with high cooling demands
Cooling Tower Motor, Three-Phase, Totally Enclosed Air-Over, 15 hp HP, 1,775 RPM Nameplate RPM, 254TV Frame, CW/CCW Motor Shaft Rotation, 230/460V AC Voltage, 37.5/18.8 A Full Load Amps, Three Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position All Angle, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.15 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1 5/8 in, Shaft Length 4 in, Length Less Shaft 16 5/8 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.75
- Package Width: 21.75
- Package Height: 18.00
- Package Weight: 349.00
Product info last updated on March 13, 2026 5:44am UTC
Category: Motors
