Cooling Tower Motor, Three Phase, 20 HP, 1, 775 Nameplate RPM, 230/460V AC, 256TV Frame MPN:256TTTCD16544
Cooling Tower Motor, Three Phase, 20 HP, 1, 775 Nameplate RPM, 230/460V AC, 256TV Frame

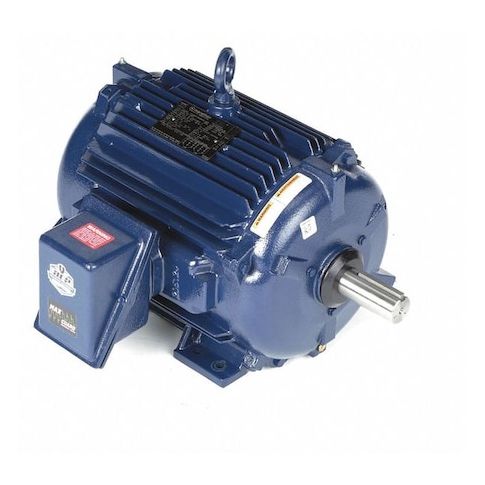

This 20 HP three-phase cooling tower motor from Marathon is designed for high-performance applications in various industries. Its 1,775 RPM nameplate speed and 230/460V AC voltage make it suitable for use in commercial and industrial settings. The motor's totally enclosed air-over design and rigid base mounting type ensure durability and efficient heat dissipation. With a service factor of 1.15, this motor can handle demanding tasks while maintaining reliability. Its applications include cooling systems in HVAC, industrial process cooling, and wastewater treatment plants, among others. Its compact size and robust construction make it an ideal choice for heavy-duty use.
Top product features:
- Totally Enclosed Air-Over Design provides a safe and reliable operating environment for the motor.
- Three-Phase Operation allows for efficient power distribution and reduced energy consumption.
- Ball Bearings ensure smooth and quiet operation, extending the motor's lifespan.
Top product applications:
- HVAC Systems
- Industrial Cooling Systems
- Commercial Building Air Conditioning Systems
Cooling Tower Motor, Three-Phase, Totally Enclosed Air-Over, 20 hp HP, 1,775 RPM Nameplate RPM, 256TV Frame, CW/CCW Motor Shaft Rotation, 230/460V AC Voltage, 48.0/24.1 A Full Load Amps, Three Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position All Angle, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.15 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1 5/8 in, Shaft Length 4 in, Length Less Shaft 18 3/8 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.80
- Package Width: 21.80
- Package Height: 18.00
- Package Weight: 375.00
Product info last updated on February 17, 2026 3:42pm UTC
Category: Motors
