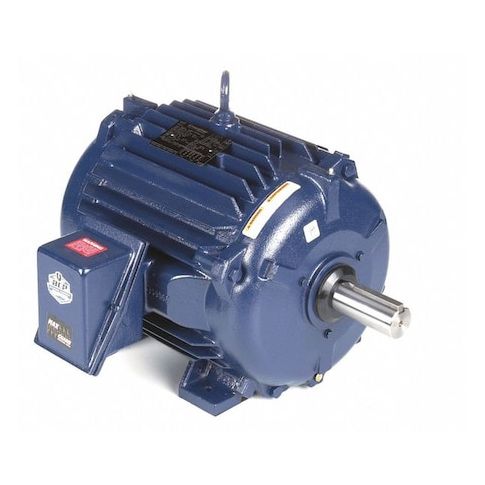

Cooling Tower Motor, Three Phase, 25 HP, 1, 775 Nameplate RPM, 230/460V AC, 284TV Frame MPN:284TTTCD16540
Cooling Tower Motor, Three Phase, 25 HP, 1, 775 Nameplate RPM, 230/460V AC, 284TV Frame
Cooling Tower Motor, Three-Phase, Totally Enclosed Air-Over, 25 hp HP, 1,775 RPM Nameplate RPM, 284TV Frame, CW/CCW Motor Shaft Rotation, 230/460V AC Voltage, 62.0/31.0 A Full Load Amps, Three Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position All Angle, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.15 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1 7/8 in, Shaft Length 4 5/8 in, Length Less Shaft 18 13/16 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 24.30
- Package Weight: 440.00
Product info last updated on February 17, 2026 7:36am UTC
Category: Motors
