Three-Phase General Purpose Motor, 30 HP, 326T Frame, 230/460V AC Voltage, 1188 rpm Nameplate RPM MPN:326TTDBD6076
Three-Phase General Purpose Motor, 30 HP, 326T Frame, 230/460V AC Voltage, 1188 rpm Nameplate RPM

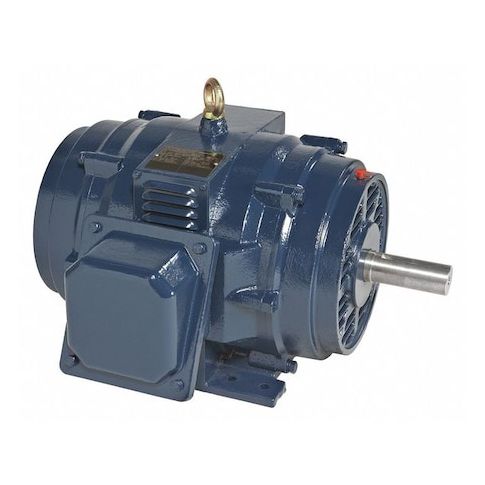

This 30 HP three-phase general purpose motor from Marathon is designed for demanding applications. With a nameplate RPM of 1188 and a high efficiency rating of 93.6%, it provides reliable and energy-efficient operation. Suitable for continuous duty, it's ideal for use in manufacturing, material handling, and other heavy industry settings. The motor's open drip-proof enclosure and rigid base mounting ensure durability and stability, while its steel frame and ball bearings provide long-lasting performance. CSA certified and UL recognized, this motor meets the highest standards of quality and safety, making it a reliable choice for a wide range of industrial applications.
Top product features:
- Three-phase design for efficient operation
- Open drip-proof motor enclosure for protection against environmental hazards
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Pumps and Water Treatment Plants
- Industrial Fans and Blowers
- Centrifuges and Separators
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 30 HP, Nameplate RPM 1188 rpm, Frame 326T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 75.0/37.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1,101-1,200, CSA Certified, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 19 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 34.25
- Package Width: 27.16
- Package Height: 27.16
- Package Weight: 584.00
Product info last updated on March 15, 2026 2:10am UTC
Category: Motors
