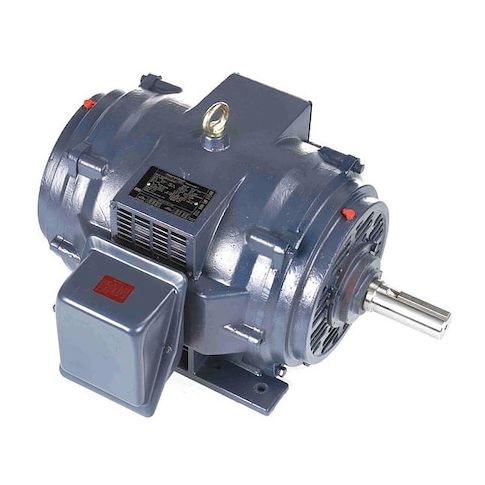

Three-Phase General Purpose Motor, 20 HP, 286T Frame, 230/460V AC Voltage, 1182 rpm Nameplate RPM MPN:286TTDBD6076
Three-Phase General Purpose Motor, 20 HP, 286T Frame, 230/460V AC Voltage, 1182 rpm Nameplate RPM
The Marathon 20 HP three-phase general purpose motor is a reliable and efficient solution for a wide range of industrial applications. Suitable for use in continuous duty, this motor delivers 92.5% nominal efficiency and operates at 1182 rpm. Its steel frame and rigid base mounting ensure stable performance, while the open drip-proof enclosure design provides protection against dust and water. Ideal for use in manufacturing, processing, and other high-volume industries, this motor is CE, CSA, and UL recognized for safety and quality. Its compact design and easy installation make it a convenient choice for a variety of applications.
Top product features:
- Three-phase operation for efficient power distribution
- Open drip-proof motor enclosure design for protection against dust and debris
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial conveyor systems
- Pumps and pumping stations
- Textile machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 1182 rpm, Frame 286T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 52.5/26.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 27.00
- Package Height: 26.00
- Package Weight: 366.00
Product info last updated on January 27, 2026 1:50pm UTC
Category: Motors
