Three-Phase General Purpose Motor, 30 HP, 286T Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM MPN:286TTDBD6026
Three-Phase General Purpose Motor, 30 HP, 286T Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM

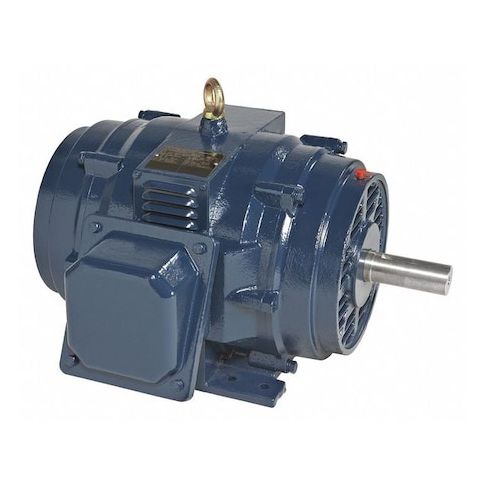

This 30 HP, 286T frame, three-phase general purpose motor from Marathon is designed for a wide range of industrial applications. Its robust construction and open drip-proof enclosure make it suitable for use in harsh environments, while its rigid base motor mounting and ball bearings ensure smooth operation and extended lifespan. With a nameplate RPM of 1775 and a nominal efficiency of 94%, this motor is ideal for continuous duty applications such as pumps, fans, and conveyors. Its compact size and CE, CSA, and UL recognition make it a reliable choice for various industries, including manufacturing, construction, and food processing.
Top product features:
- Three-phase operation allows for efficient power distribution and utilization.
- Ball motor bearings provide smooth and quiet operation.
- Continuous duty operation enables the motor to run for extended periods without overheating.
Top product applications:
- Industrial textile manufacturing
- Pulp and paper mills
- Chemical processing plants
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 30 HP, Nameplate RPM 1775 rpm, Frame 286T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 73.0/36.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.00
- Package Width: 25.50
- Package Height: 26.50
- Package Weight: 425.00
Product info last updated on March 6, 2026 6:55am UTC
Category: Motors
