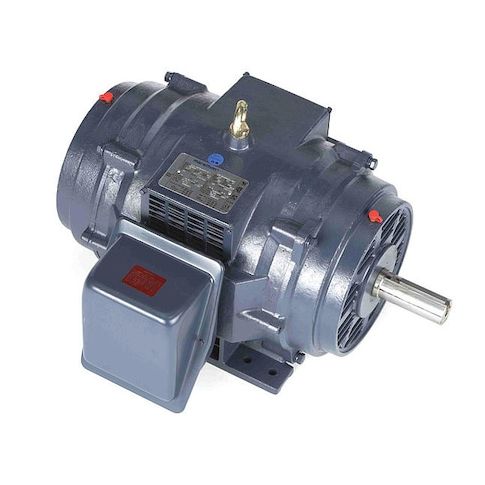

Three-Phase General Purpose Motor, 10 HP, 256T Frame, 230/460V AC Voltage, 1182 rpm Nameplate RPM MPN:256TTDBD6076
Three-Phase General Purpose Motor, 10 HP, 256T Frame, 230/460V AC Voltage, 1182 rpm Nameplate RPM
This 10 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial and commercial use. Its 256T frame and open drip proof motor enclosure make it suitable for use in harsh environments, while its rigid base motor mounting type ensures stability and durability. With a nameplate RPM of 1182, it provides efficient operation and meets the demands of continuous duty. The motor's high efficiency and robust design make it an ideal choice for industries such as manufacturing, material handling, and HVAC, where reliability and performance are crucial.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Ball bearings provide smooth and quiet motor operation.
- Open drip-proof motor enclosure design protects the motor from dust and water ingress.
Top product applications:
- Industrial textile machinery
- Pumps and water treatment systems
- Conveyor systems and material handling equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 10 HP, Nameplate RPM 1182 rpm, Frame 256T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 25.6/12.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 19.00
- Package Height: 20.00
- Package Weight: 253.00
Product info last updated on February 16, 2026 12:15pm UTC
Category: Motors
