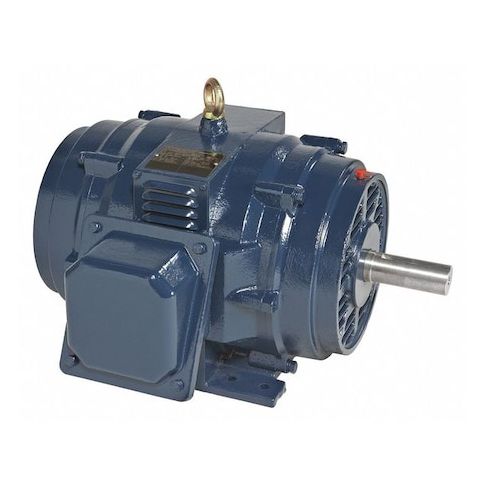

Three-Phase General Purpose Motor, 50 HP, 324TS Frame, 230/460V AC Voltage, 3565 rpm Nameplate RPM MPN:324TSTDBD6001
Three-Phase General Purpose Motor, 50 HP, 324TS Frame, 230/460V AC Voltage, 3565 rpm Nameplate RPM
This 50 HP, three-phase general purpose motor from Marathon is designed for reliable operation in a variety of applications, including industrial processes, manufacturing, and material handling. With a nameplate RPM of 3565 and a high efficiency rating of 93%, this motor provides significant energy savings and reduced operating costs. Its rugged design and steel frame ensure durability and long-term performance, while the open drip-proof motor enclosure design protects against dust and moisture. Suitable for continuous duty, this motor is ideal for use in environments with high temperatures, making it a versatile solution for a range of industrial applications.
Top product features:
- Three-phase operation allows for efficient power distribution and motor control.
- The open drip-proof motor enclosure design provides protection from dust and moisture.
- Ball motor bearings enable smooth and quiet operation.
Top product applications:
- Industrial Pumping Systems
- Textile Mill Machinery
- Power Generation Plants
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 50 HP, Nameplate RPM 3565 rpm, Frame 324TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 115.0/57.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 3001-3600, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.50
- Package Width: 27.16
- Package Height: 27.16
- Package Weight: 411.00
Product info last updated on March 5, 2026 1:43am UTC
Category: Motors
