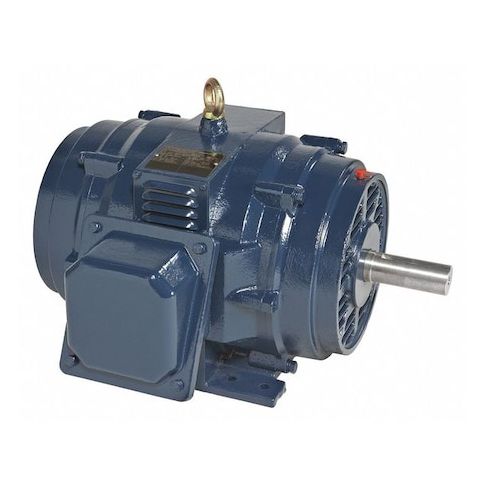

Three-Phase General Purpose Motor, 25 HP, 284T Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM MPN:284TTDBD6026
Three-Phase General Purpose Motor, 25 HP, 284T Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM
This 25 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications that require high efficiency and reliability. With a nameplate RPM of 1775, this motor is ideal for use in manufacturing, processing, and other industries where continuous duty is required. Its open drip-proof enclosure design and rigid base motor mounting ensure long-lasting performance in harsh environments. The motor's 93.5% nominal efficiency and 1.15 service factor make it a cost-effective choice for applications with varying loads. Suitable for use in a wide range of industries, including food processing, chemical processing, and oil and gas.
Top product features:
- Three-Phase General Purpose Motor
- Has a rigid base motor mounting type
- Operates at a nominal efficiency of 93.5 percent
Top product applications:
- Industrial Pump Applications
- High-Speed Printing Presses
- Large Fans and Blowers
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 25 HP, Nameplate RPM 1775 rpm, Frame 284T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 62.5/31.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 32.50
- Package Height: 25.50
- Package Weight: 329.00
Product info last updated on March 4, 2026 12:51am UTC
Category: Motors
