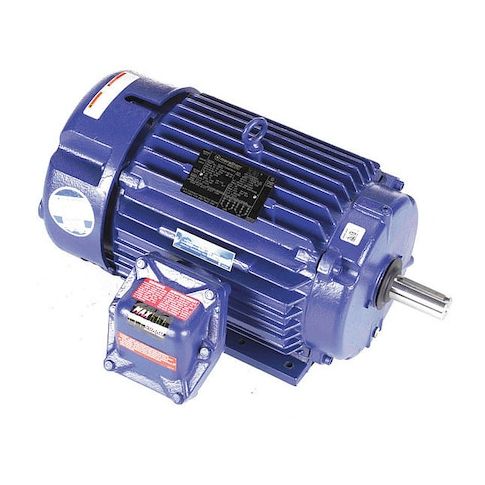

Hazardous Location Motor, 10 HP, 1765 rpm MPN:215TTGCD6526
Hazardous Location Motor, 10 HP, 1765 rpm
This Marathon hazardous location motor is designed for use in harsh environments, operating at 1765 rpm and 10 HP. Suitable for three-phase applications, it can handle 230V AC or 460V AC with a maximum ambient temperature of 40°C. The motor's totally enclosed fan-cooled design and thermal protection ensure reliable performance. Use it in applications such as oil and gas refineries, chemical plants, and other hazardous locations classified as Class I, Class II, or T3B. Its compact size and durable construction make it an ideal choice for space-constrained areas, providing efficient and safe operation in demanding environments.
Top product features:
- Three-phase design
- Totally enclosed fan cooled motor enclosure
- Thermal protection via T-Stat
Top product applications:
- Oil and Gas Drilling and Production Facilities
- Chemical Processing Plants
- Petrochemical Plants
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 26.6/13.3 A, 215T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.20
- Package Width: 20.20
- Package Height: 19.90
- Package Weight: 257.00
Product info last updated on February 2, 2026 1:40am UTC
Category: Motors
