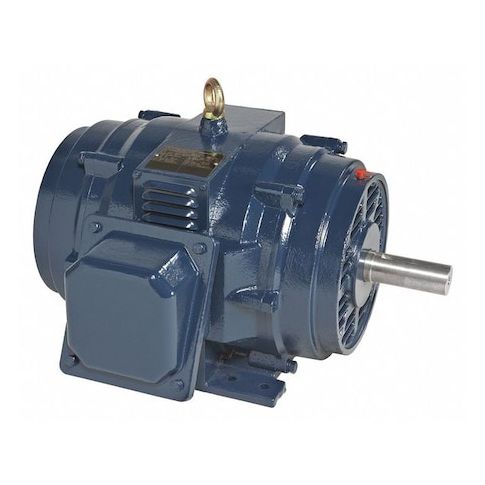

Three-Phase General Purpose Motor, 75 HP, 365T Frame, 230/460V AC Voltage, 1782 rpm Nameplate RPM MPN:365TTDBD6060
Three-Phase General Purpose Motor, 75 HP, 365T Frame, 230/460V AC Voltage, 1782 rpm Nameplate RPM
This 75 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial processes, manufacturing, and commercial settings. Its 230/460V AC voltage and 60 Hz frequency make it suitable for various power systems. With a nameplate RPM of 1782 and a maximum ambient temperature of 40°C, this motor can handle demanding environments. Its rigid base mounting and ball bearings ensure stable operation and long lifespan. Ideal for continuous duty, this motor is CSA certified and UL recognized, making it a reliable choice for applications requiring high efficiency and performance.
Top product features:
- Three-phase design for efficient operation
- Open drip proof motor enclosure for protection against environmental contaminants
- Ball motor bearings for reduced friction and increased motor lifespan
Top product applications:
- Industrial Pumping Applications
- High-Pressure Cleaning Systems
- Power Generation and Distribution Equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 75 HP, Nameplate RPM 1782 rpm, Frame 365T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 172.0/86.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, Continuous Duty, 1701-1800, CSA Certified, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 38.70
- Package Width: 32.20
- Package Height: 21.20
- Package Weight: 849.00
Product info last updated on March 1, 2026 4:32am UTC
Category: Motors
