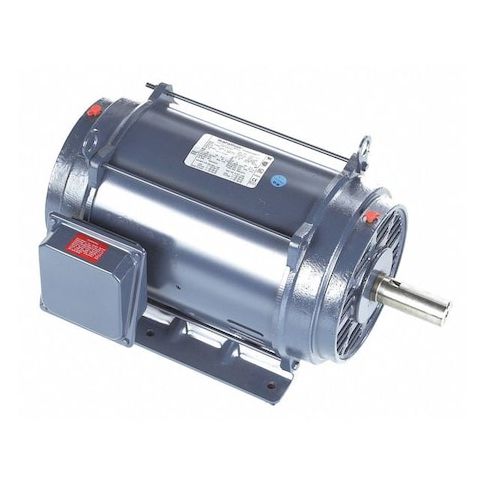

Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:256TTDBD6026
Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
This 20 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications that require high efficiency and reliability. With a nameplate RPM of 1,770 and a frame size of 256T, it's suitable for use in a variety of settings, including industrial facilities, manufacturing plants, and commercial buildings. Its open drip-proof motor enclosure design provides protection from dust and water, making it ideal for use in harsh environments. With a service factor of 1.15 and a nominal efficiency of 93 percent, this motor offers improved performance and reduced energy costs.
Top product features:
- Three-Phase operation
- Open Drip Proof Motor Enclosure Design
- Continuous Duty Capability
Top product applications:
- Pumps and compressors
- Conveyors and fans
- Material handling equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 1,770, Frame 256T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 48.5/24.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 19.00
- Package Height: 19.40
- Package Weight: 260.00
Product info last updated on February 16, 2026 9:43pm UTC
Category: Motors
