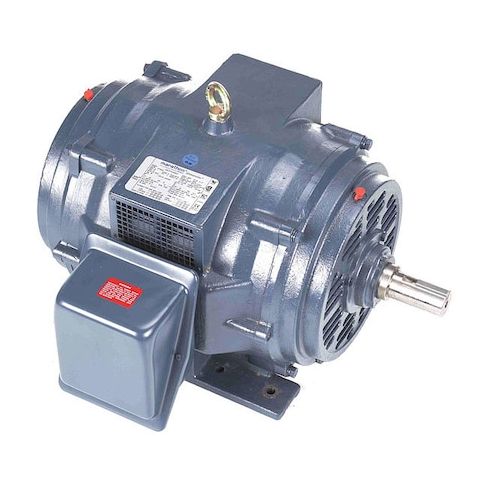

Three-Phase General Purpose Motor, 30 HP, 284TS Frame, 230/460V AC Voltage, 3562 rpm Nameplate RPM MPN:284TSTDBD6001
Three-Phase General Purpose Motor, 30 HP, 284TS Frame, 230/460V AC Voltage, 3562 rpm Nameplate RPM
This 30 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications requiring continuous duty operation. With a nameplate RPM of 3562 and a nominal efficiency of 91.5%, this motor provides reliable and efficient power for use in manufacturing, industrial, and commercial settings. Its open drip-proof motor enclosure design and rigid base motor mounting type make it suitable for a variety of applications, including conveyor systems, pumps, and fans. The motor's 1.15 service factor and Class F insulation ensure long-lasting performance in demanding environments. Ideal for use in facilities with limited space, this motor is a reliable choice.
Top product features:
- Three-phase operation
- Open drip-proof motor enclosure design
- Ball motor bearings
Top product applications:
- Pumps and compressors
- Conveyors and material handling equipment
- Fans and blowers
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 30 HP, Nameplate RPM 3562 rpm, Frame 284TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 71.5/35.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.5 Percent, Continuous Duty, 3001-3600, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 28.74
- Package Width: 25.39
- Package Height: 25.00
- Package Weight: 315.26
Product info last updated on April 27, 2026 8:01am UTC
Category: Motors
