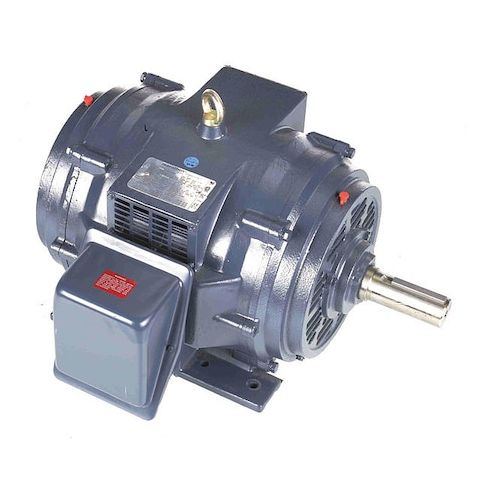

Three-Phase General Purpose Motor, 15 HP, 284T Frame, 230/460V AC Voltage, 1184 rpm Nameplate RPM MPN:284TTDBD6076
Three-Phase General Purpose Motor, 15 HP, 284T Frame, 230/460V AC Voltage, 1184 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 15 HP, Nameplate RPM 1184 rpm, Frame 284T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 41.0/20.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 32.00
- Package Height: 26.00
- Package Weight: 330.00
Product info last updated on March 2, 2026 12:56am UTC
Category: Motors
