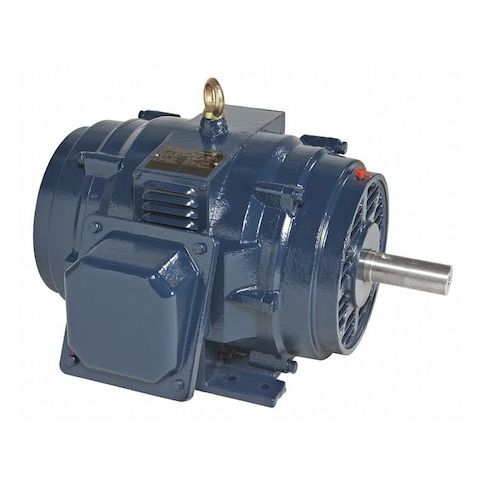

Three-Phase General Purpose Motor, 100 HP, 365TS Frame, 230/460V AC Voltage, 3568 rpm Nameplate RPM MPN:365TSTDBD6001
Three-Phase General Purpose Motor, 100 HP, 365TS Frame, 230/460V AC Voltage, 3568 rpm Nameplate RPM
This 100 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial and commercial use. Its 365TS frame and open drip proof motor enclosure make it suitable for harsh environments, while its rigid base motor mounting type provides stability and durability. With a nameplate RPM of 3568 and a nominal efficiency of 93.6%, this motor offers high performance and energy efficiency. Its CSA certification and UL recognition ensure compliance with industry standards, making it a reliable choice for applications such as pumps, fans, and conveyor systems.
Top product features:
- Three-Phase Design for Efficient Power Distribution
- Open Drip Proof Motor Enclosure for Protection from Environmental Contaminants
- Ball Motor Bearings for Smooth and Quiet Operation
Top product applications:
- Industrial Production Lines
- Pumping Stations
- Textile Manufacturing
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 100 HP, Nameplate RPM 3568 rpm, Frame 365TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 228.0/114.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 3001-3600, CSA Certified, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 36.02
- Package Width: 30.71
- Package Height: 29.92
- Package Weight: 798.00
Product info last updated on February 16, 2026 10:20am UTC
Category: Motors
