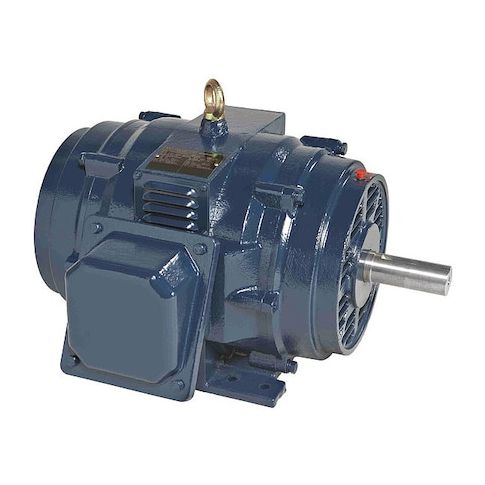

Three-Phase General Purpose Motor, 7 1/2 HP, 254T Frame, 230/460V AC Voltage, 1182 rpm Nameplate RPM MPN:254TTDBD6076
Three-Phase General Purpose Motor, 7 1/2 HP, 254T Frame, 230/460V AC Voltage, 1182 rpm Nameplate RPM
This 7.5 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications requiring reliable and efficient power. Suitable for use in industrial settings, it features a robust open drip-proof enclosure and rigid base mounting type for secure installation. With a high efficiency rating of 90.5% and a service factor of 1.15, this motor provides reliable performance in continuous duty applications. Its compact 254T frame and CW/CCW shaft rotation make it ideal for use in a variety of industries, including manufacturing, oil and gas, and food processing. Its CE, CSA, and UL recognition ensure compliance with safety standards.
Top product features:
- Three-phase operation for efficient power distribution
- Open drip proof motor enclosure design for protection against dust and moisture
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Industrial manufacturing plants
- Pumping stations
- Centrifugal compressors
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1182 rpm, Frame 254T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 20.2/10.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.50
- Package Width: 24.20
- Package Height: 24.40
- Package Weight: 205.03
Product info last updated on February 5, 2026 2:27pm UTC
Category: Motors
