Three-Phase General Purpose Motor, 60 HP, 364T Frame, 230/460V AC Voltage, 1782 rpm Nameplate RPM MPN:364TTDBD6060

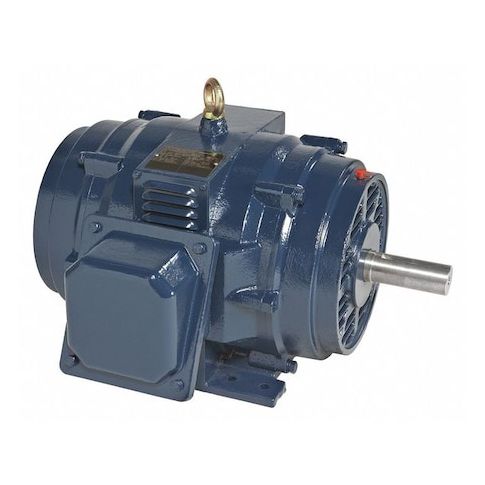

Three-Phase General Purpose Motor, 60 HP, 364T Frame, 230/460V AC Voltage, 1782 rpm Nameplate RPM
This 60 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial processes, manufacturing, and heavy-duty machinery. Its 230/460V AC voltage and 1782 rpm nameplate speed make it suitable for demanding tasks. With a rigid base motor mounting type and ball bearings, this motor provides reliable operation and long lifespan. Its 95% nominal efficiency and continuous duty rating ensure optimal performance and energy savings. Suitable for use in temperatures up to 40°C, this motor is CSA certified and UL listed, making it a reliable choice for industrial applications.
Top product features:
- Three-phase design for high-power applications
- Open drip-proof motor enclosure for protection from dust and moisture
- Ball bearings for smooth and quiet operation
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 60 HP, Nameplate RPM 1782 rpm, Frame 364T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 140.0/70.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, Continuous Duty, 1701-1800, CSA Certified, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.80
- Package Width: 22.20
- Package Height: 20.00
- Package Weight: 747.00
Product info last updated on March 4, 2026 9:31pm UTC
Category: Motors
