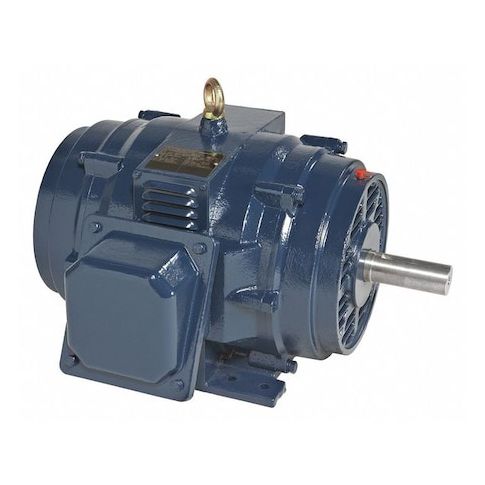

Three-Phase General Purpose Motor, 50 HP, 365T Frame, 230/460V AC Voltage, 1185 rpm Nameplate RPM MPN:365TTDBD6086
Three-Phase General Purpose Motor, 50 HP, 365T Frame, 230/460V AC Voltage, 1185 rpm Nameplate RPM
This 50 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications in various industries. With a nameplate RPM of 1185 and a rigid base motor mounting type, it provides reliable operation and easy installation. The open drip-proof motor enclosure design and steel frame ensure durability and resistance to harsh environments. This motor is ideal for continuous duty applications, such as conveyor systems, pumps, and fans, and can operate in temperatures up to 40 degrees C. Its high efficiency and CSA certification make it a reliable choice for industries requiring high-performance motors.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Open drip-proof motor enclosure design protects the motor from dust and debris, ensuring reliable operation in harsh environments.
- Ball bearings provide smooth and quiet motor operation, reducing vibration and increasing overall system efficiency.
Top product applications:
- Pumps
- Conveyors
- Generators
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 50 HP, Nameplate RPM 1185 rpm, Frame 365T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 120.0/60.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1,101-1,200, CSA Certified, UL Recognized
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 37.60
- Package Width: 30.71
- Package Height: 29.92
- Package Weight: 820.00
Product info last updated on March 1, 2026 9:58am UTC
Category: Motors
