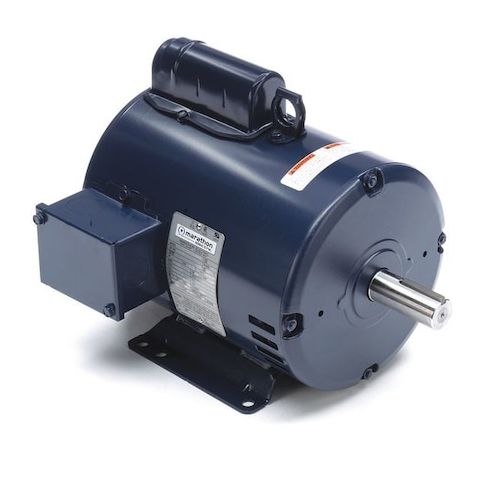

Capacitor-Start General Purpose Motor, 1 hp HP, 182T Frame, 115/230V AC Voltage MPN:182TCDW17084
Capacitor-Start General Purpose Motor, 1 hp HP, 182T Frame, 115/230V AC Voltage
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,165 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 15.6/7.8 A, 182T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.30
- Package Width: 14.00
- Package Height: 14.00
- Package Weight: 83.00
Product info last updated on January 22, 2026 3:55am UTC
Category: Motors
