Hazardous Loc Mtr, 3 Ph, TEFC, 40 HP, T3B MPN:364TTGS16577
Hazardous Loc Mtr, 3 Ph, TEFC, 40 HP, T3B

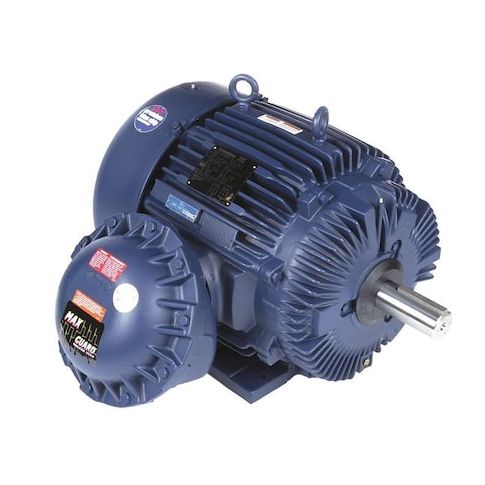

This 40 HP, three-phase hazardous location motor from Marathon is designed for use in areas where explosive atmospheres are present, meeting Class I, Class II, and T3B temperature ratings. It features a totally enclosed fan-cooled (TEFC) design, providing reliable performance in harsh environments. With a nameplate RPM of 1,185 and a service factor of 1.15, this motor offers efficient and durable operation. Suitable for applications such as oil and gas, chemical processing, and pharmaceutical manufacturing, this motor provides a safe and reliable solution for hazardous locations, reducing downtime and increasing productivity.
Top product features:
- Totally Enclosed Fan Cooled design for improved cooling and reduced maintenance
- Three-Phase motor design for efficient power distribution and reduced energy consumption
- Hazardous Location Class I, Class II, Temp. Code T3B certification for safe operation in explosive or flammable environments
Top product applications:
- Pumps and blowers in hazardous locations such as oil refineries or chemical plants.
- Fans and blowers in hazardous locations such as mines or offshore oil platforms.
- Generators and power equipment in hazardous locations such as construction sites or emergency response vehicles.
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 40 hp HP, Nameplate RPM 1,185 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 100.0/50.0 A, 364T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 39.00
- Package Width: 44.50
- Package Height: 25.00
- Package Weight: 1030.00
Product info last updated on February 28, 2026 1:25am UTC
Category: Motors
