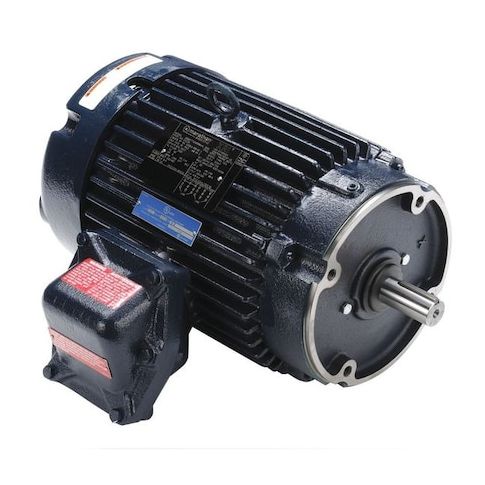

Hazardous Loc Mtr, 3 Ph, TEFC, 3 HP, T3B MPN:182TTGCD4068
Hazardous Loc Mtr, 3 Ph, TEFC, 3 HP, T3B
This hazardous location motor is designed for use in explosive or flammable environments, meeting Class I, Class II, and T3B temperature code requirements. With a 3 HP rating and 1,765 RPM, it provides reliable operation in demanding conditions. The motor's totally enclosed fan-cooled design and Class F insulation ensure efficient cooling and protection against electrical shock. Suitable for applications such as oil refineries, chemical plants, and mining operations, this motor offers continuous duty cycle operation at temperatures up to 40 degrees C. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Three-phase motor design
- Totally Enclosed Fan Cooled (TEFC) motor enclosure
- Thermal protection with T-Stat temperature sensor
Top product applications:
- Pumps
- Industrial machinery
- Conveyors
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 8.0/4.0 A, 182TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.00
- Package Width: 17.50
- Package Height: 15.00
- Package Weight: 160.00
Product info last updated on February 21, 2026 4:19am UTC
Category: Motors
