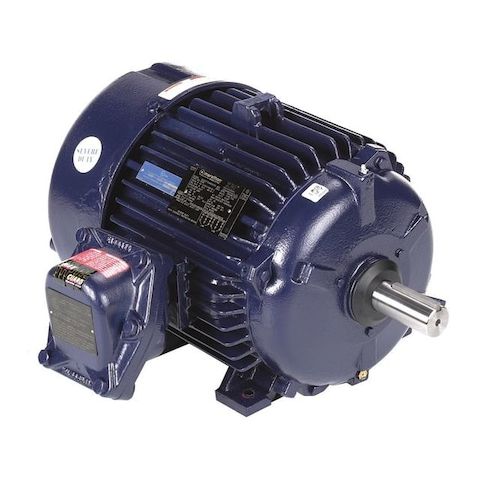

Hazardous Loc Mtr, 3 Ph, TEFC, 15 HP, T3B MPN:254TTGCD6531
Hazardous Loc Mtr, 3 Ph, TEFC, 15 HP, T3B
This 15 HP hazardous location motor is designed for use in areas where flammable gases or vapors may be present. With a three-phase, totally enclosed fan cooled design, it provides reliable operation in harsh environments. Suitable for applications such as oil and gas, chemical processing, and pharmaceutical manufacturing, this motor offers a high level of safety and efficiency. Its 1.15 service factor and 60 Hz operation ensure optimal performance, while its Class I and Class II hazardous location rating meets the toughest industry standards. Use it to power equipment in high-risk areas with confidence.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled design
- Thermal protection via T-Stat
Top product applications:
- High-speed manufacturing equipment in hazardous environments
- Pumping stations in hazardous locations
- Oil and gas refineries with hazardous location equipment requirements
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 15 hp HP, Nameplate RPM 1,775 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 37.5/18.8 A, 254T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 22.70
- Package Height: 18.40
- Package Weight: 385.00
Product info last updated on May 6, 2026 3:29pm UTC
Category: Motors
