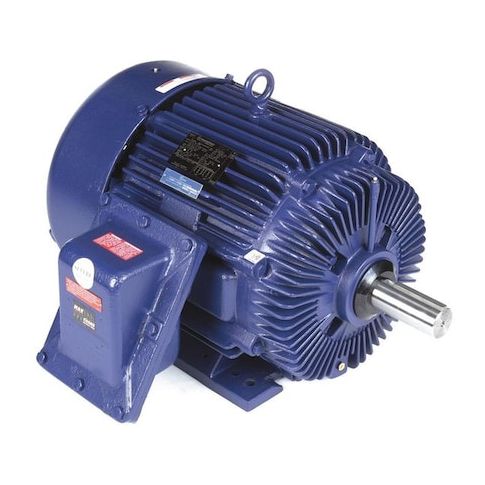

Hazardous Loc Mtr, 3 Ph, TEFC, 40 HP, T3B MPN:324TTGS6529
Hazardous Loc Mtr, 3 Ph, TEFC, 40 HP, T3B
This Marathon hazardous location motor is designed for use in areas with explosive or flammable atmospheres, meeting Class I, Class II, and T3B temperature ratings. The 40 HP, 3-phase motor operates at 1,780 RPM, with a service factor of 1.15 and thermal protection. It is suitable for applications in oil and gas, chemical, and pharmaceutical industries, as well as in areas with high temperatures and humidity. The totally enclosed fan-cooled design ensures efficient cooling and reduces maintenance needs, making it an ideal choice for demanding environments where reliability and safety are paramount.
Top product features:
- Three Phase operation
- Totally Enclosed Fan Cooled design
- Hazardous Location Class I and II rating with T3B temperature code
Top product applications:
- Oil and Gas Wells
- Petrochemical Processing Plants
- Power Generation Facilities
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 40 hp HP, Nameplate RPM 1,780 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 95.0/47.5 A, 324T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 38.00
- Package Width: 31.75
- Package Height: 24.79
- Package Weight: 768.00
Product info last updated on February 11, 2026 10:09am UTC
Category: Motors
