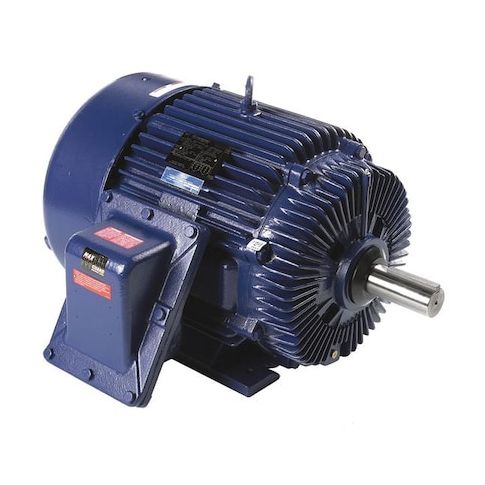

Hazardous Loc Mtr, 3 Ph, TEFC, 50 HP, T3B MPN:326TTGS6532
Hazardous Loc Mtr, 3 Ph, TEFC, 50 HP, T3B
This hazardous location motor from Marathon is designed for use in areas with explosive or flammable gases or dust. With a 50 hp rating and 1,777 RPM, it provides reliable power in challenging environments. The motor's totally enclosed fan-cooled design and Class F insulation ensure efficient operation and long lifespan. Its 1.15 service factor and T-Stat thermal protection provide added reliability. Suitable for use in Class I, Class II, and T3B locations, this motor is ideal for applications in oil and gas refineries, chemical plants, and other hazardous industries. It can be used with 230V or 460V AC power.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Thermal Protection via T-Stat
Top product applications:
- Pumps
- Air Compressors
- Crane and Hoist Systems
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 50 hp HP, Nameplate RPM 1,777 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 123.0/61.5 A, 326T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 38.00
- Package Width: 31.00
- Package Height: 25.10
- Package Weight: 808.00
Product info last updated on March 13, 2026 7:58pm UTC
Category: Motors
