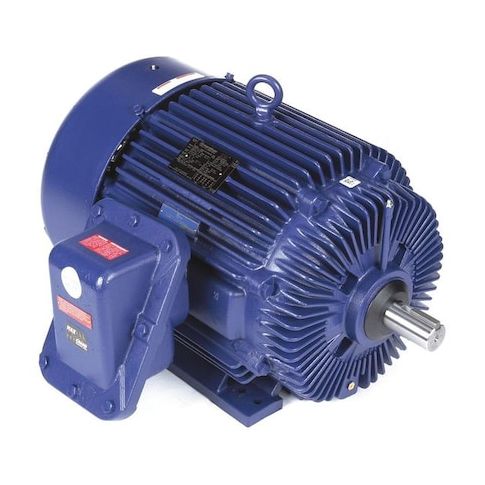

Hazardous Loc Mtr, 3 Ph, TEFC, 50 HP, T3B MPN:326TSTGS6501
Hazardous Loc Mtr, 3 Ph, TEFC, 50 HP, T3B
This hazardous location motor from Marathon is designed for use in areas where flammable gases or dust may be present, such as oil rigs or chemical plants. Its three-phase, totally enclosed fan-cooled design ensures efficient cooling and protection from the elements, while its 50 HP rating and 3,555 RPM nameplate speed make it suitable for a variety of applications, including pumps, fans, and compressors. With a motor service factor of 1.15 and thermal protection, this motor provides reliable operation and long lifespan, making it an ideal choice for industries requiring high-performance, heavy-duty motors.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Hazardous Location Classification for Class I and Class II Environments
Top product applications:
- Industrial Process Control
- Pump or Compressor Drive
- Material Handling Equipment
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 50 hp HP, Nameplate RPM 3,555 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 118.0/59.0 A, 326TS Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 38.00
- Package Width: 31.00
- Package Height: 23.00
- Package Weight: 820.00
Product info last updated on February 12, 2026 11:34pm UTC
Category: Motors
