Hazardous Loc Mtr, 3 Ph, TEFC, 20 HP, T3B MPN:256TTGCD6526
Hazardous Loc Mtr, 3 Ph, TEFC, 20 HP, T3B

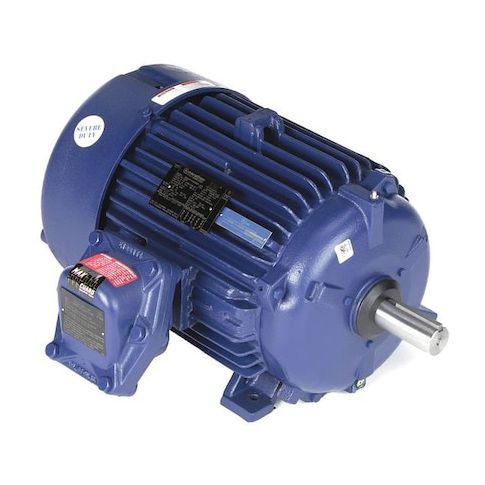

This Marathon Hazardous Location Motor is designed for use in hazardous environments, meeting Class I, Class II, and T3B temperature codes. It operates at 1,775 RPM, delivering 20 horsepower in three-phase configurations. The TEFC enclosure ensures safe and efficient operation, while the motor's service factor of 1.15 provides flexibility in demanding applications. Suitable for use in industries such as oil and gas, chemical processing, and pharmaceutical manufacturing, this motor offers reliable performance in extreme temperatures up to 40°C. Its compact design and short lead time make it an ideal solution for projects requiring rapid deployment and efficient operation.
Top product features:
- Three-phase operation
- Totally Enclosed Fan Cooled (TEFC) design
- Thermal protection via T-Stat
Top product applications:
- Industrial Pumping Applications
- High-Temperature Furnace Fans
- Oil and Gas Drilling Rigs
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 20 hp HP, Nameplate RPM 1,775 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 48.0/24.1 A, 256T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 38.70
- Package Width: 32.20
- Package Height: 19.00
- Package Weight: 417.00
Product info last updated on February 1, 2026 10:46pm UTC
Category: Motors
