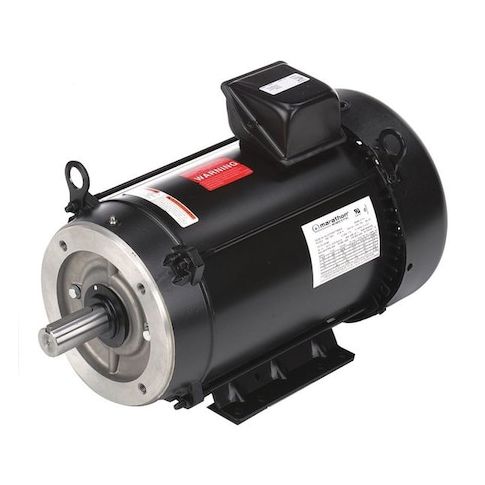

Vector Motor, 22.3 lb-ft, 7.5 HP, 230/460 V MPN:213THFW7726
Vector Motor, 22.3 lb-ft, 7.5 HP, 230/460 V
The Marathon Vector Motor is a high-performance, three-phase motor designed for demanding industrial applications. With a 7.5 HP output and 22.3 lb-ft of torque, it provides reliable power for a wide range of uses, including manufacturing, material handling, and pumping systems. Its 1,000:1 speed range and maximum speed of 4,000 RPM make it suitable for applications requiring high efficiency and precision control. The motor's continuous duty cycle and NEMA Design B rating ensure reliable operation in harsh environments, making it an ideal choice for industries that require high-performance and long-lasting equipment.
Top product features:
- Three Phase
- Torque 22.3 ft-lb
- Speed Range 1,000:1
Top product applications:
- Pump applications
- Conveyor systems
- Fans and blowers
Vector Motor, Three Phase, Motor Design 3-Phase, 7 1/2 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 21.4/10.7 A, 213TC Frame, Torque 22.3 ft-lb, Max. Speed 4,000 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.00
- Package Width: 17.00
- Package Height: 17.50
- Package Weight: 130.00
Product info last updated on February 7, 2026 2:05pm UTC
Category: Motors
