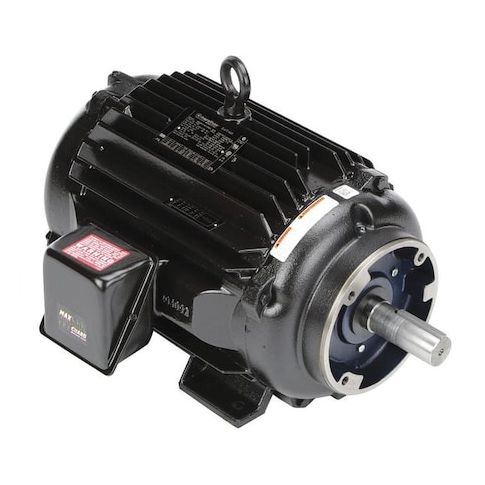

Vector Motor, 59.5 lb-ft, 20 HP, 230/460 V MPN:256THTNA7026
Vector Motor, 59.5 lb-ft, 20 HP, 230/460 V
The Marathon Vector Motor is a high-performance, three-phase motor designed for demanding applications. With a torque of 59.5 lb-ft and 20 HP, it provides efficient power and speed to drive industrial equipment. Suitable for use in environments up to 104°F, this motor is ideal for manufacturing, processing, and material handling operations. Its NEMA Design A rating ensures reliable performance in continuous duty cycles. The motor's compact design and durable construction make it a versatile solution for various industries, including food processing, packaging, and chemical processing, where high-speed and high-torque applications are critical.
Top product features:
- Three Phase operation
- 59.5 lb-ft of torque
- Speed Range of 1,000:1
Top product applications:
- High-speed pumping applications
- Heavy-duty conveyor systems
- Industrial textile machinery
Vector Motor, Three Phase, Motor Design Three-Phase, 20 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 52.0/26.0 A, 256TC Frame, Torque 59.5 ft-lb, Max. Speed 1,800 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.60
- Package Width: 31.50
- Package Height: 22.00
- Package Weight: 410.00
