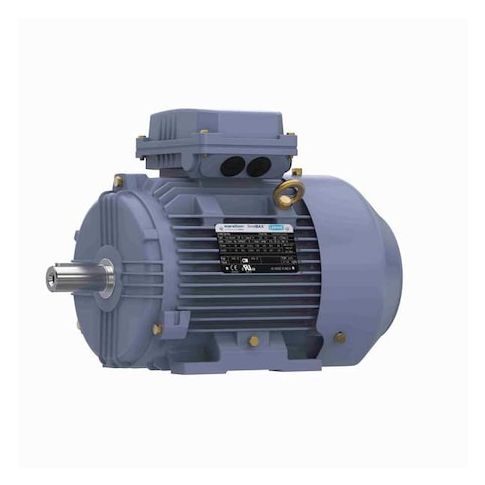

Three-Phase General Purpose Motor, 10 HP, 132M Frame, 230/460V AC Voltage, 1775 Nameplate RPM MPN:TCA7P52AE231GAA009
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G313037660
Three-Phase General Purpose Motor, 10 HP, 132M Frame, 230/460V AC Voltage, 1775 Nameplate RPM
This 10 HP three-phase motor from Marathon is designed for general purpose use in a variety of applications, including industrial machinery, pumps, and HVAC systems. Its totally enclosed fan cooled design provides efficient cooling and protection from harsh environments. With a high efficiency rating of 91.7% and a service factor of 1.15, this motor is ideal for applications requiring high reliability and performance. Its CE certification and UL listing ensure compliance with international safety standards. Suitable for use in temperatures up to 40°C, this motor is a reliable choice for demanding industrial applications.
Top product features:
- Three-Phase Design for efficient power distribution
- Totally Enclosed Fan Cooled Motor Enclosure for reliable operation in harsh environments
- Ball Motor Bearings for smooth and long-lasting motor operation
Top product applications:
- Pumps and compressors
- Conveyors and material handling systems
- Industrial fans and blowers
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1775, Frame 132M, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 25.4/12.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, 1,701-1,800, CE Certified, UL Listed
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.65
- Package Width: 13.00
- Package Height: 18.31
- Package Weight: 223.00
Product info last updated on January 19, 2026 10:18pm UTC
Category: Motors
