Vector Motor, 22.5 lb-ft, 5 HP, 230/460 V MPN:215THTL7776

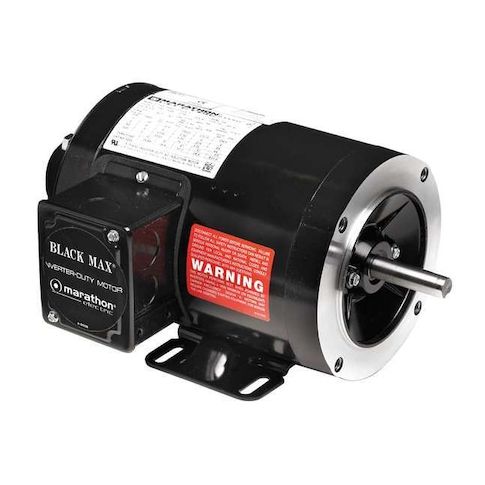

Vector Motor, 22.5 lb-ft, 5 HP, 230/460 V
This high-torque Vector Motor from Marathon is designed for demanding applications that require reliable and efficient operation. With a 5 HP rating and 22.5 lb-ft of torque, it's ideal for use in heavy-duty industrial settings, such as material handling, conveyor systems, and manufacturing equipment. Its continuous duty cycle and NEMA Design A rating ensure smooth operation and extended lifespan. The motor's compact design and robust construction make it a versatile solution for a wide range of applications, including food processing, chemical processing, and more. Its fast lead time and availability make it an excellent choice for businesses needing to get up and running quickly.
Top product features:
- Three-phase operation
- Continuous duty cycle
- Torque output of 22.5 lb-ft
Top product applications:
- Pumps
- Conveyors
- Fans
Vector Motor, Three Phase, Motor Design Three-Phase, 5 HP, Nameplate RPM 1,165, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 15.4/7.7 A, 215TC Frame, Torque 22.5 ft-lb, Max. Speed 1,200 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.19
- Package Width: 16.50
- Package Height: 15.00
- Package Weight: 130.00
Product info last updated on January 24, 2026 12:40am UTC
Category: Motors
