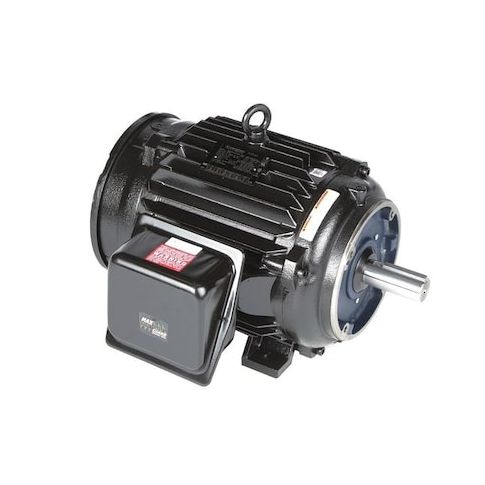

Vector Motor, 74.2 lb-ft, 25 HP, 230/460 V MPN:284THTNA7026
Vector Motor, 74.2 lb-ft, 25 HP, 230/460 V
The Marathon Vector Motor is a high-performance, three-phase motor designed for demanding industrial applications. With a powerful 25 HP rating and 74.2 lb-ft of torque, this motor is ideal for use in manufacturing, material handling, and other heavy-duty settings. Its NEMA Design A construction ensures reliable operation in harsh environments, while its 1,000:1 speed range provides flexibility for a variety of applications. Suitable for use in facilities with 230/460V AC power, this motor is a reliable choice for continuous operation, making it perfect for use in applications such as conveyor systems, pumps, and fans.
Top product features:
- Three-phase operation
- Torque output of 74.2 ft-lb
- Speed range of 1,000:1
Top product applications:
- Pumps and water treatment systems
- Conveyors and material handling systems
- Industrial fans and blowers
Vector Motor, Three Phase, Motor Design 3-Phase, 25 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 62.0/31.0 A, 284TC Frame, Torque 74.2 ft-lb, Max. Speed 1,800 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 20.95
- Package Weight: 475.00
Product info last updated on February 1, 2026 11:10am UTC
Category: Motors
