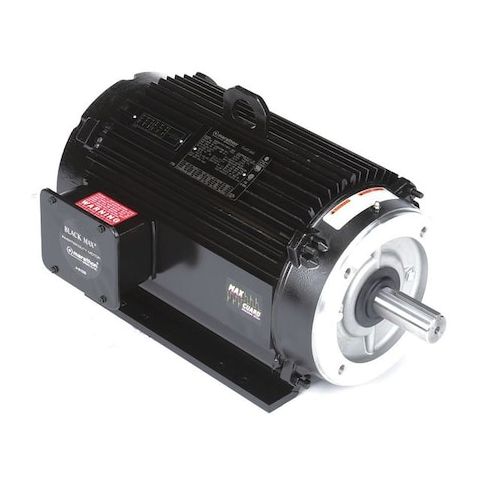

Vector Motor, 30.0 lb-ft, 10 HP, 230/460 V MPN:215THTL7726

Vector Motor, Three Phase, Motor Design 3-Phase, 10 HP, Nameplate RPM 1,774, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 27.0/13.5 A, 215TC Frame, Torque 30 ft-lb, Max. Speed 1,800 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
